Products Description

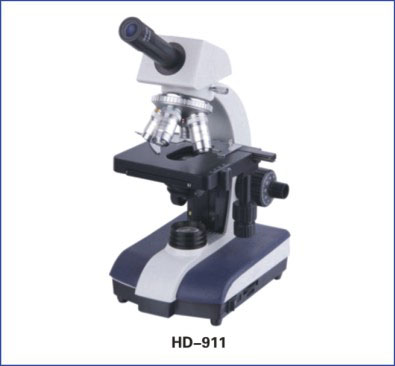

Model:HD-911
|
OUTFIT
|
MODEL
|
|
|
HD-911
|
||
|
Achromatic Objectives
|
4X,10X,40X ( S ).100X( S, Oil )
|
*
|
|
Eyepiece
|
WF10X,(WF16X for choice)
|
*
|
|
Eyepiece head
|
Monocular head
|
*
|
|
Compensation Free Binocular Head
|
|
|
|
Compensation Free Binocular Head
|
|
|
|
Nosepiece
|
Quadruple
|
*
|
|
Stage
|
Double Layer Mechanical Stage 115x125mm,Moving Range 75x45mm
|
*
|
|
Focusing
|
Coaxial Coarse and Fine Adjustment, Focusing Range 30mm, Focusing Interval 0.002mm
|
*
|
|
Illumination, condenser
NA=1.25 |
6V/20W Halogen Lamp, Adjustable Brightness
|
*
|
|
Power
|
AC Input 220V or 110V, DC Output 6V
|
*
|
