Products Description

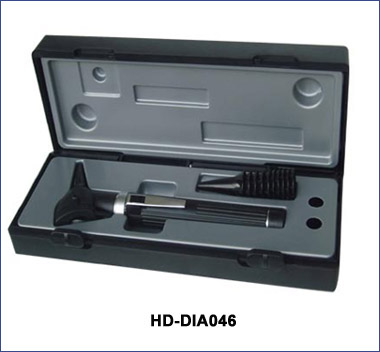

Model:HD-DIA046
The Otoscope is used to view the tympanic membrane and external ear canal to diagnose outer and middle ear pathologies. It is the mostly used device in ENT.Features:
1. Fiber optics transmit light system, the fiber optics extend to the tip of the instrument for more light output, less glare.
2. 2.5 x magnification
3. Disposable Specula: 2.5mm and 4.0mm
4. Insufflation Port: view tympanic membrane using an insufflator bulb.
5. Smart design, convenient for mobile diagnosis.
6. OT8C is available with AA alkaline or Ni-MH batteries. The model of the bulb is T4954, 2.5V, 1.6W.
Technical Specifications:
Illumination Form: Fiber optics transmit light
Illumination of light spot: The brightness of the tip is =1000 LX
Magnification of lens: 2.5 x
Diameter of ear-specula: 2.5mm, 4.0mm
Insufflation Port: Yes
Type of bulb: T4954 (2.5V, 1.6W)
Rated voltage: 2 AA alkaline or 2 Ni-MH batteries
