Products Description

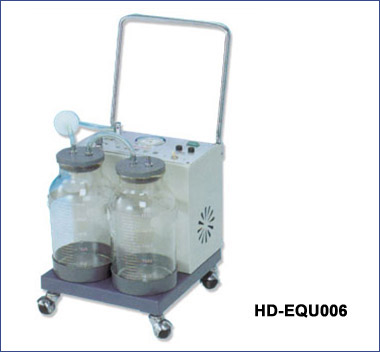

Model:HD-EQU006
Features:
1.Efficient single rotor vacuum pump with oil impregnated vanes capable of producing a vacuum
higher than 0.09MPa (-680mmHg).And a suction flow more than 20L/min.
2.Twin 5000ml glass collection bottles to collect the sucked liquid, each of them calibrated in
100ml steps up.
3.Adjuster knob to regulate the precision vacuum gauge of the desired vacuum gauge of the
desired vacuum level from 0.02 to 0.09Mpa(-150~-680mmHg).
4.No difficulty near or remote control as both hand switch and foot-switch installed in parallel.
5.Ease in moving and storing by the casters and the carrying handle.
6.Stability and durability.The unit is assured of long troublefree service.
Specifications:
Max Vacuum:
0.09MPa(680mmHg)
Flow rate: 20L/min (in pump exit: 30L/min)
Storage bottles: 2500mlx2
Power supply: AC220V10%,50Hz
Input: 280VA
GW: 19.5kg
Dimension: 38cmx37cmx48cm
