Products Description

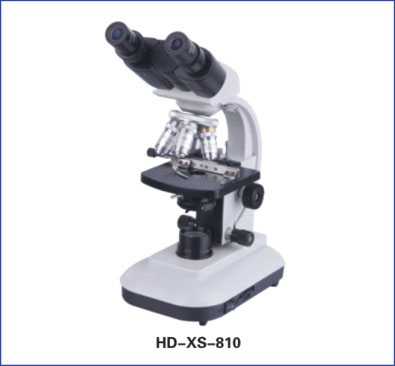

Model:HD-XS-810
|
OUTFIT
|
MODEL
|
|
|
HD-XS-810
|
||
|
Achromatic Objectives
|
4X,10X,40X ( S )
|
*
|
|
100X( S, Oil )
|
*
|
|
|
Eyepiece
|
WF10X��(WF16X for choice)
|
*
|
|
Eyepiece head
|
Compensation Free Binocular Head
|
*
|
|
Monocular head
|
|
|
|
Nosepiece
|
Triple
|
|
|
Quadruple
|
*
|
|
|
Stage
|
Stage+Moving Scale
|
*
|
|
Focusing
|
Coarse adjustment Focusing 15mm
|
*
|
|
Fine adjustment Focusing 1.6mm
|
*
|
|
|
Illumination, condenser
|
Condenser Na=0.65
|
|
|
Condenser Na=1.20
|
*
|
|
|
6V/20W Halogen Lamp, Adjustable Brightness
|
*
|
|
|
Power
|
AC Input 220V or 110V, DC Output 6V
|
*
|
